Thermistor Used in Electric Heating Uniform

Thermistors are a type of sensitive components, which are divided into positive temperature coefficient thermistors (PTC) and negative temperature coefficient thermistors (NTC) according to different temperature coefficients. NTC thermistors are used in different fields, so what is the application of thermistors in electric heating clothing? Read this article to better understand the use of thermistors.

Thermistor Features:

①Small size, fast response

②Able to accurately test the temperature change.

③Wide operating temperature range, good stability and reliability.

④Easy to install and use, the sealing can be done according to the environment and conditions of the customer's application.

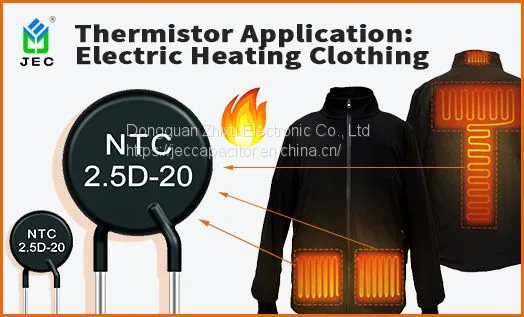

The principle and structure of electric heating clothing: place a low-voltage power supply electric blanket-type clothing lining on the inner layer of the clothing, and install a carbon fiber heating wire group, a detachable lithium-ion rechargeable battery, a temperature controller, a waterproof type magnetic buckle power switch and NTC thermistor. One end of the carbon fiber heating wire set is connected to a lithium-ion rechargeable battery, the other end is connected to a temperature controller, and the middle is connected in series with a magnetic button power switch and an NTC thermistor. When the user turns on the magnetic button power switch on the electric heating clothing, the carbon fiber electric heating wire group will generate a heating effect through the current, so that the clothing has the function of heating and keeping warm.

The above content is about how thermistor works in electric heating clothing. We're JYH HSU(JEC) Electronics Ltd (or Dongguan Zhixu Electronic Co., Ltd.), an electronic components manufacturer.Our factories are ISO 9000 and ISO 14000 certified. If you have technical questions or need samples, welcome to contact us.
